Computer Organization ; Data Representation recap

Week 2: Data Representation

Deciaml, Binary, Octal, Hexadecimal



Convert Decimal to Binary

60(base 10)

60 - 32(2^5) = 28 - 16(2^4) = 12 - 8(2^3) = 4 - 4(2^2) = 0

111100(base 2)

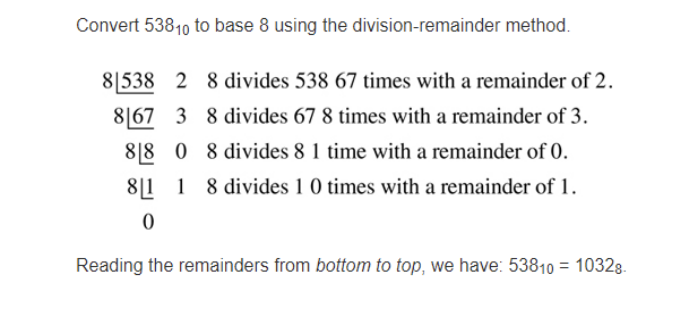

Decimal to Octal

Division - Remainder Method

100

Binary to Octal

Separate into 3-bit chunks starting from the right

Determine the value of each 3-bit sequence

100101001000101101100(base 2)



100 101 001 000 101 101 100

4      5      1     0      5      5     4



4510554(base 8)



Octal to Binary

Write the 3-bit sequence for each digit



Binary to Hex(and vice versa)

Same as binary to octal except separate into 4-bit chunks

100101001000101101100



0001 0010 1001 0001 0110 1100

1         2          9       1        6       C



12916C(16 base)



Hex to Binary

12916C(16 base)



1         2          9       1        6       C

0001 0010 1001 0001 0110 1100



100101001000101101100(base 2)

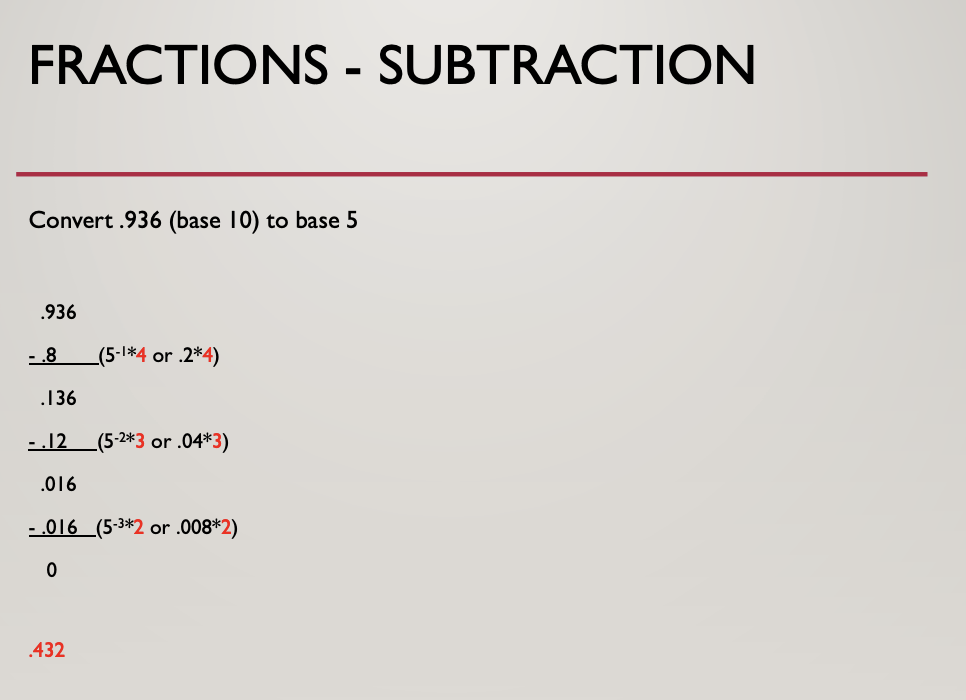

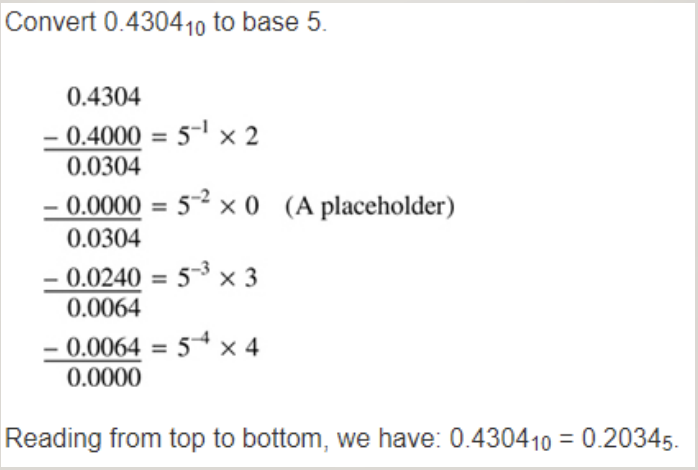

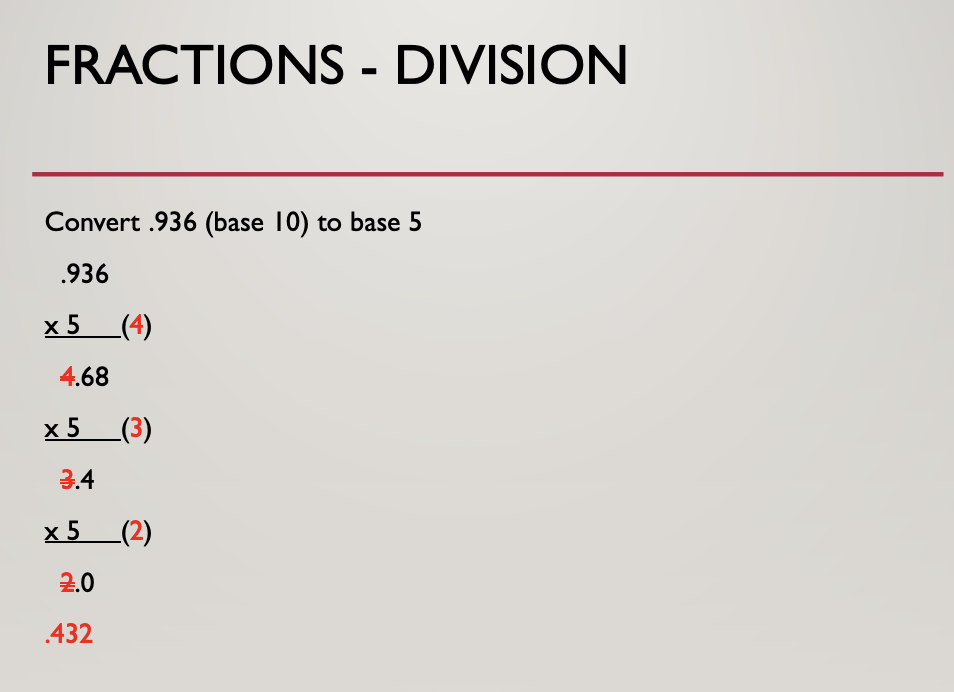

Convert Fractions

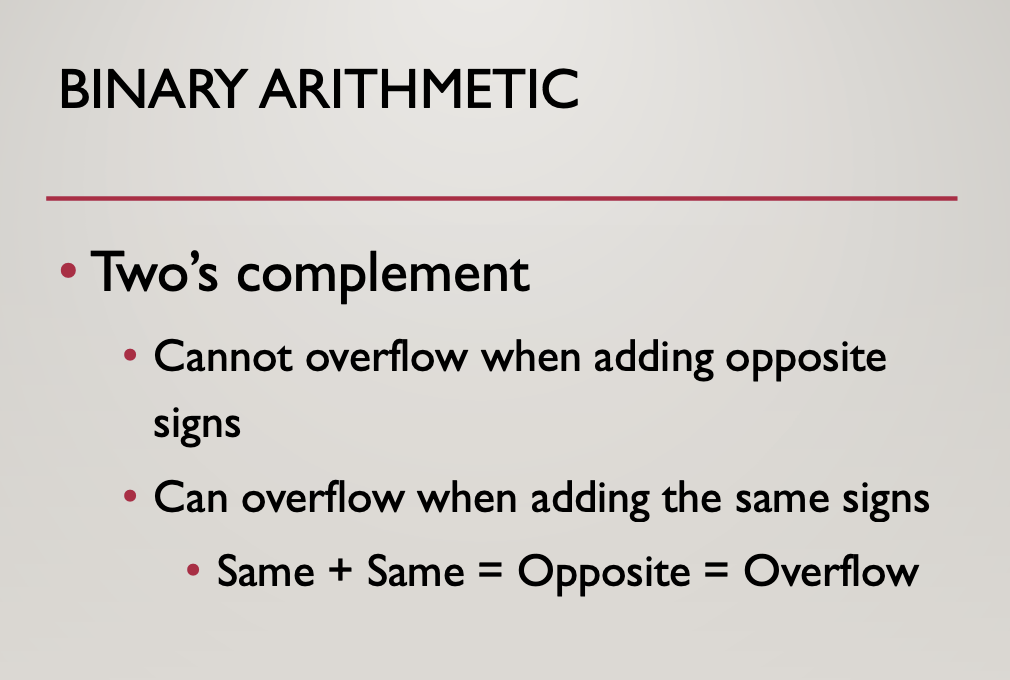

Two's complement

Booth's Algorithm

https://www.grahn.us/projects/booths-algorithm/



Dan Grahn | Booth's Algorithm Multiplier

https://www.youtube.com/watch?v=1ubyXuXxIWU

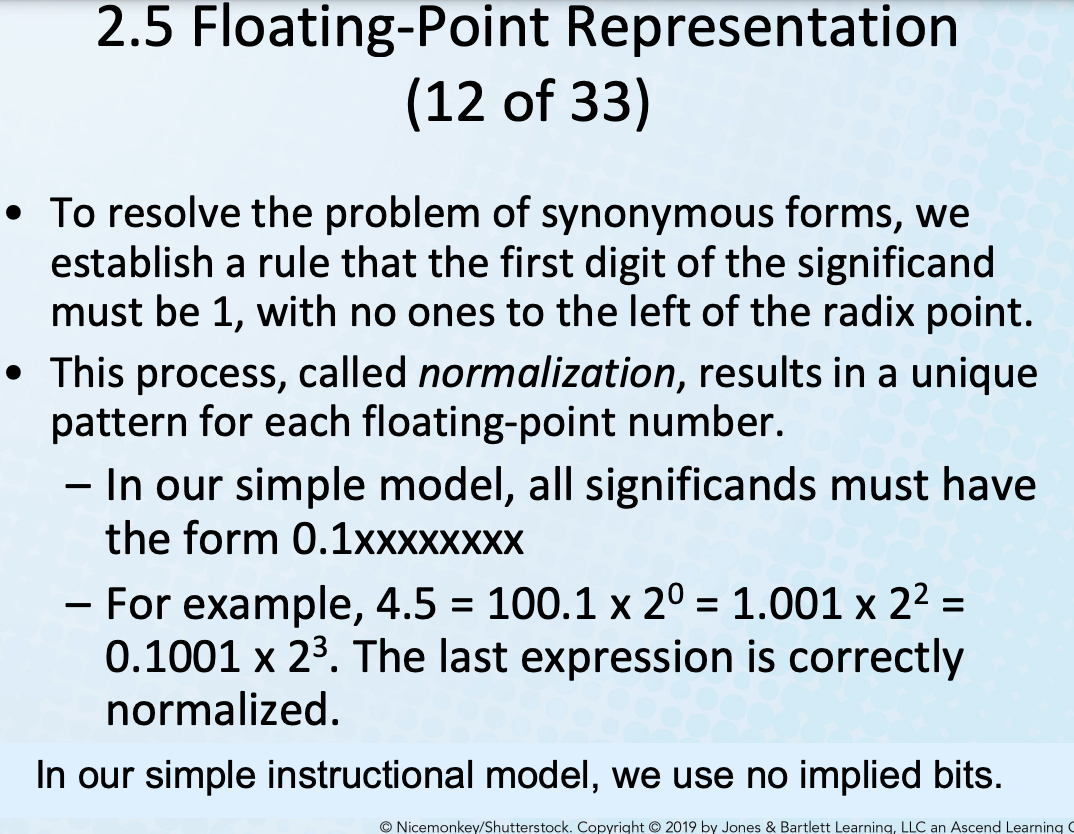

normalization rule

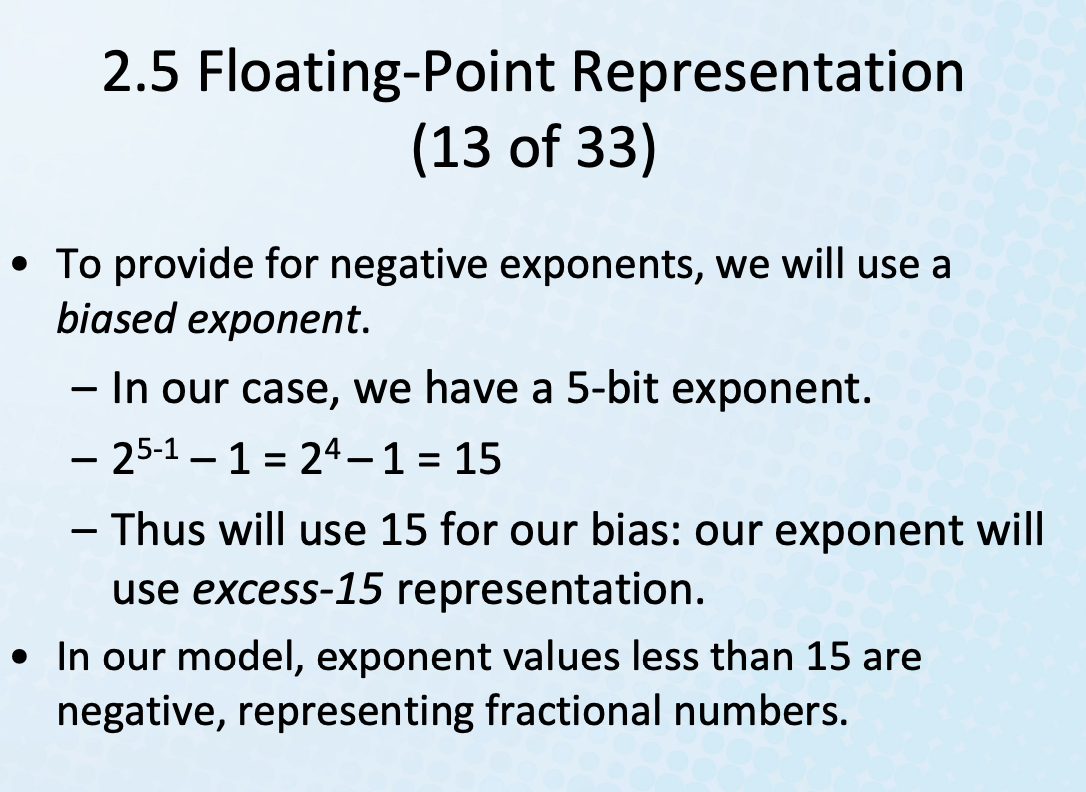

bias rule using bits of exponent
